Name: HPE ProLiant DL380 Gen10 CTO Rack Server
SKU: 46742

What's New for DL380 Gen10

Increased Single-Width GPU Density with up to 7 NVIDIA T4 in a 2U, standard length, rackmount server.
HPE DL38x Gen10 x16/x16/x16 Primary (P14374-B21) and Secondary (P14373-B21) Risers support up to (7) NVIDIA T4 16GB ; or up to (6) NVIDIA T4 16GB balanced across both processors with additional options for PCIe card expansion.
Networking Choice (NC) server models provide greater flexibility in the primary networking selection.
Supporting the second generation Intel Xeon Scalable processor family with up to a 11% per-core performance gain over first generation and with memory speeds up to 2933 MT/s.
HPE Persistent Memory offers the flexibility to deploy as dense memory or fast storage using Intel Optane DC Persistent Memory and enables per-socket memory capacity of up to 3.0 TB.
iLO 5 security enhancements: Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor. HPE InfoSight provides cloud-based analytics to predict and prevent issues proactively.

The HPE ProLiant DL380 Gen10 server is securely designed to reduce costs and complexity, featuring the First and Second Generation Intel Xeon Processor Scalable Family with up to a 60% performance gain and 27% increase in cores, plus the HPE 2933 MT/s DDR4 SmartMemory supporting 3.0 TB.

Other Versions:

Ideal for:

Cloud Servers
Corporate IT
Database
Point-of-Sale (POS)
Retail Servers
Virtual Desktop Interface (VDI)
Virtualization

It supports 12 Gb/s SAS, and up to 20 NVMe drive plus a broad range of compute options. HPE Persistent Memory offers unprecedented levels of performance for databases and analytic workloads. Run everything from the most basic to mission-critical applications and deploy with confidence.

Flexible Design Making Your Investment Expand As Your Business Needs Grow

The HPE ProLiant DL380 Gen10 server has an adaptable chassis, including new Hewlett Packard Enterprise modular drive bay configuration options with up to 30 SFF, up to 19 LFF or up to 20 NVMe drive options along with support for up to three double wide GPU options.

HPE Persistent Memory works with DRAM to provide fast, high capacity, cost effective memory and storage to transform big data workloads and analytics by enabling data to be stored, moved, and processed quickly.

In conjunction with the embedded SATA HPE Dynamic Smart Array S100i Controller for boot, data and media needs, the redesigned HPE Smart Array Controllers allow you the flexibility to choose the optimal 12 Gb/s controller most suited to your environment, and operate in both SAS and HBA mode.

Along with an embedded 4x1GbE, you have a choice of HPE FlexibleLOM or PCIe standup adapters which offer a choice of networking bandwidth (1GbE to 40GbE) and fabric so you can adapt and grow to changing business needs.

Chassis Options

Chassis Configurations - EmeddedLOM

CTO Server [Chassis]	HPE ProLiant DL380 Gen10 8LFF CTO Server	HPE ProLiant DL380 Gen10 12LFF CTO Server	HPE ProLiant DL380 Gen10 8SFF CTO Server	HPE ProLiant DL380 Gen10 24SFF CTO Server	HPE DL380 Gen10 8SFF BC CTO Server
SKU Number
Processor	Not included as standard
DIMM Slots	24-DIMM slots
Storage Controller	Embedded SW RAID with 14 SATA ports (12-ports accessible), choice of HPE modular Smart Array and PCIe plug-in controller
PCIe	Three standard in primary riser (with dual M.2 support)
Drive Cage - included	8 LFF	12 LFF	8 SFF	24 SFF	8 SFF
Network Controller	HPE 1Gb Ethernet 4 - Port 331i Adapter plus optional HPE FlexibleLOM or stand up card
Fans	6-Standard	6-Performance	4-Standard	6-Performance	4-Standard
USB	1x 3.0 standard plus iLo front service port	None as standard	1x 3.0 standard plus iLo front service port	1x 3.0 standard plus iLo front service port	1x 3.0 standard plus iLO front service port

Chassis Configurations - Network Choice (NC)

CTO Server [Chassis]	HPE ProLiant DL380 Gen10 8LFF NC CTO Server	HPE ProLiant DL380 Gen10 12LFF NC CTO Server	HPE ProLiant DL380 Gen10 8SFF NC CTO Server	HPE ProLiant DL380 Gen10 24SFF NC CTO Server	HPE ProLiant DL380 Gen10 8SFF NC BC CTO Server
SKU Number
Processor	Not included as standard
DIMM Slots	24-DIMM slots
Storage Controller	Embedded SW RAID with 14 SATA ports (12-ports accessible), choice of HPE modular Smart Array and PCIe plug-in controller
PCIe	Three standard in primary riser (with dual M.2 support)
Drive Cage - included	8 LFF	12 LFF	8 SFF	24 SFF	8 SFF
Network Controller	Choice of either HPE FlexibleLOM or select stand-up network adapters for primary networking selection plus additional/optional stand-up network adapters Note: No embedded networking, requires selection of a FlexibleLOM adapter
Fans	6-Standard	6-Performance	4-Standard	6-Performance	>4-Standard
USB	1x 3.0 standard plus iLo front service port	None as standard	1x 3.0 standard plus iLo front service port	1x 3.0 standard plus iLo front service port	1x 3.0 standard plus iLO front service port

EmeddedLOM Rack Servers

Servers with an embedded LAN on Motherboard (LOM) come with built-in HPE 1Gb Ethernet 4-Port 331i network interfaces adapter, providing out-of-the-box networking capabilities without the need for additional NICs. Both the NC and non-NC chassis have the option of a FlexibleLOM or Stand-up cards for network capabilities.

Network Choice (NC) Rack Servers

The Network Choice configuration allows flexibility in selecting network adapters, as it doesn't come with an embedded network interface card (NIC). This enables customization based on specific networking requirements. Both the NC and non-NC chassis have the option of a FlexibleLOM or Stand-up cards for network capabilities.

Basic Carrier (BC) Rack Server

The BC configuration is designed to support drives that are housed in basic carriers, as opposed to smart carriers. This means the server is compatible with drives installed in these simpler carriers, which may lack some of the advanced features found in smart carriers.

In BC-configured servers, certain storage controllers, such as the Tri-Mode MegaRAID Controllers, are only supported when using drives in basic carriers. Configurations must not mix BC and SC drives.

Basic Carrier (BC) Drives

Provides basic storage functionality without advanced monitoring or user feedback features, ideal for cost-effective setups with simple storage needs.

Smart Carrier (SC) Drives

Offers advanced monitoring, LED indicators, and data protection features, making it better suited for enterprise environments that require proactive management and high availability.

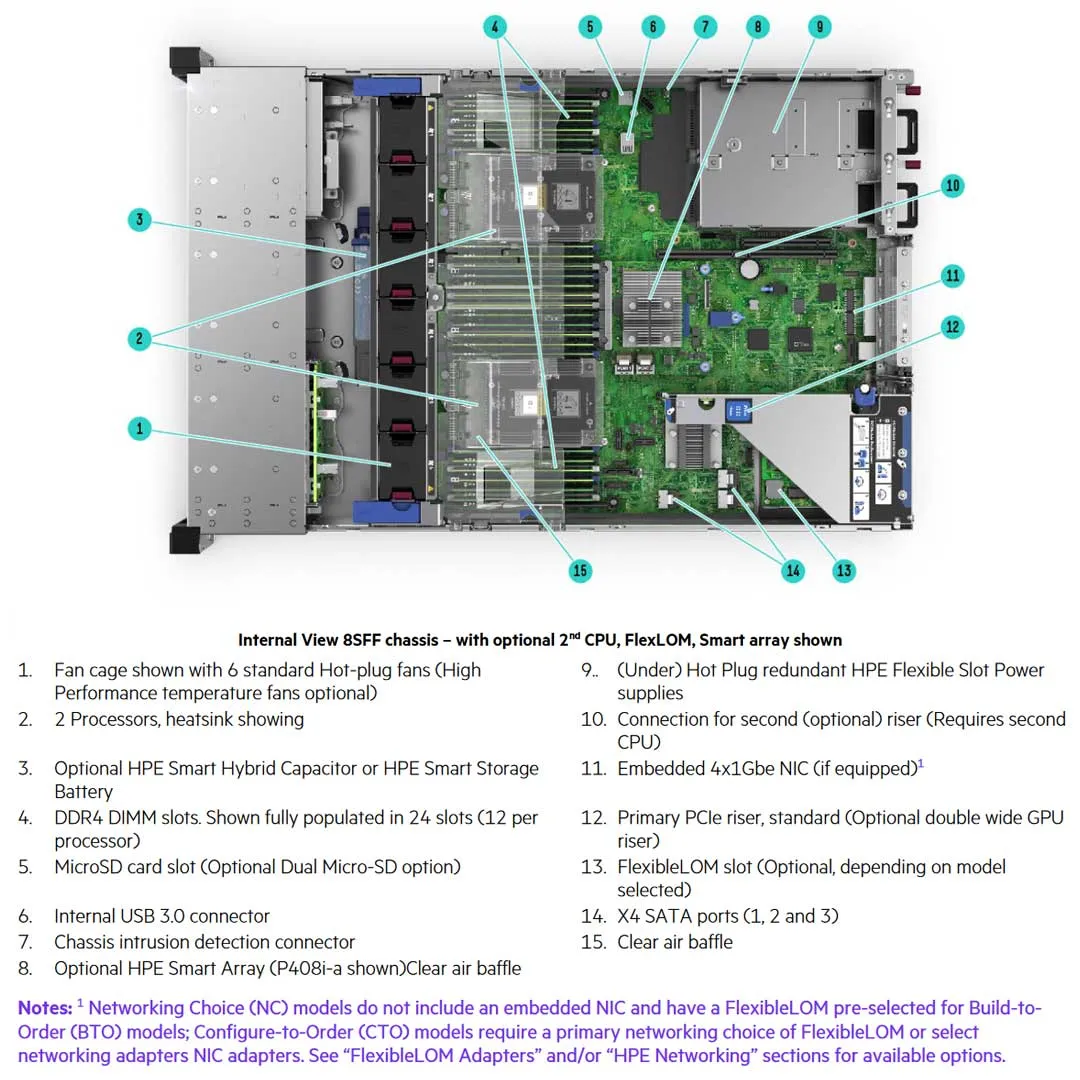

Memory | 24 DIMM

The DL380 Gen10 Rack Server features 24 DIMM slots, with 12 slots per processor, organized into 6 channels per processor and supporting up to 2 DIMMs per channel. Mixing RDIMM and LRDIMM memory is unsupported. Only 2nd Gen processors can support Intel Optane Persistent Memory, allowing a maximum of 12 DIMMs per server, and it can only be mixed with either RDIMMs or LRDIMMs, not both.

Max Memory Capacity:

(LRDIMM) 3.0 TB | 24 x 128 GB LRDIMM @ 2933 MT/s
(RDIMM) 1.54 TB | 24 x 64 GB RDIMM @ 2933 MT/s
(Intel Optane Persistent Memory) 6.0 TB | 12 X 512 GB Memory Modules @ 2666 MT/s

Configuration Breakdown

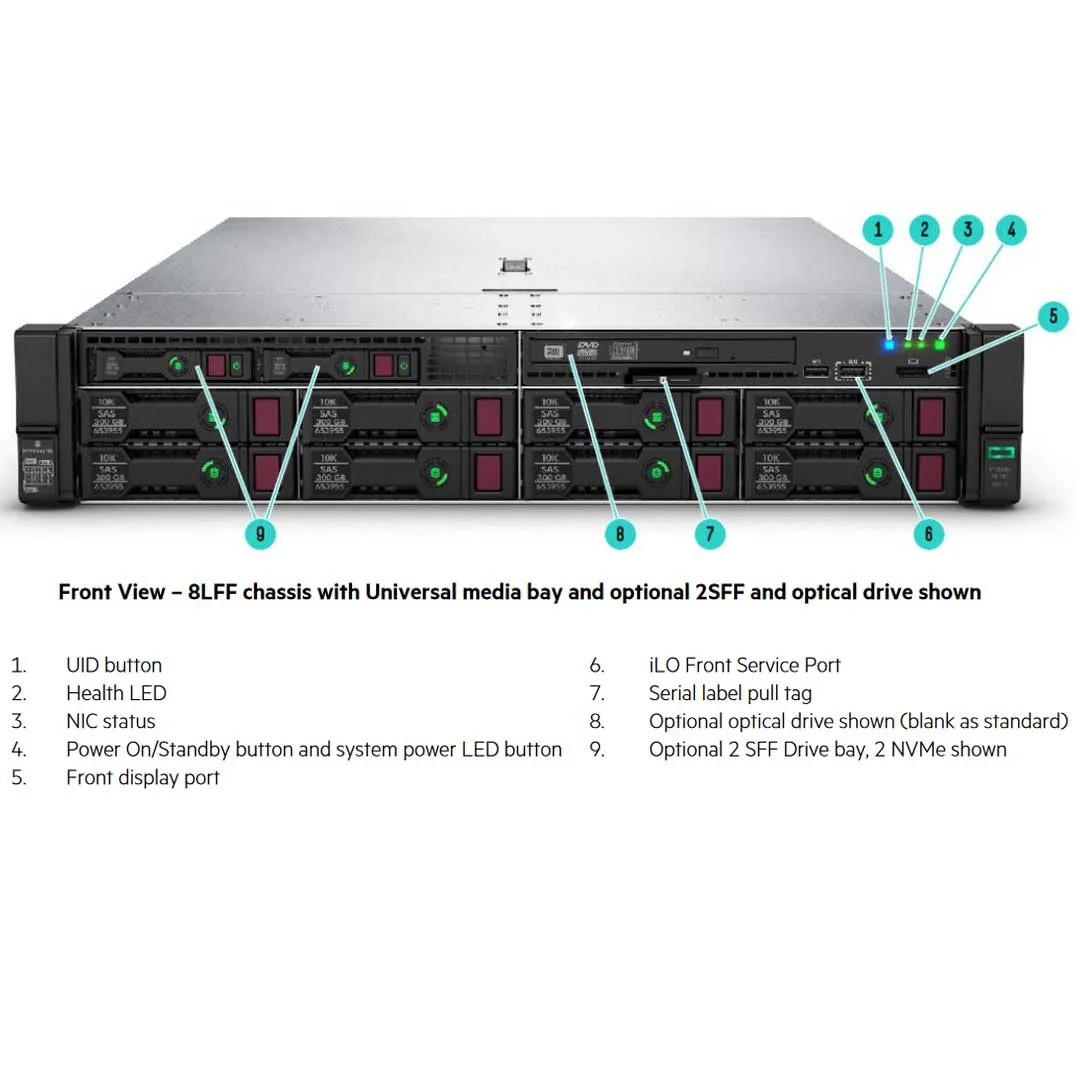

DL380 G10 8x 3.5" Chassis

Front Upgrades:

2 SFF SAS/SATA (867805-B21)
2 SFF NVMe (873781-B21)
Optical Disk Drive (ODD)

Mid Upgrades:

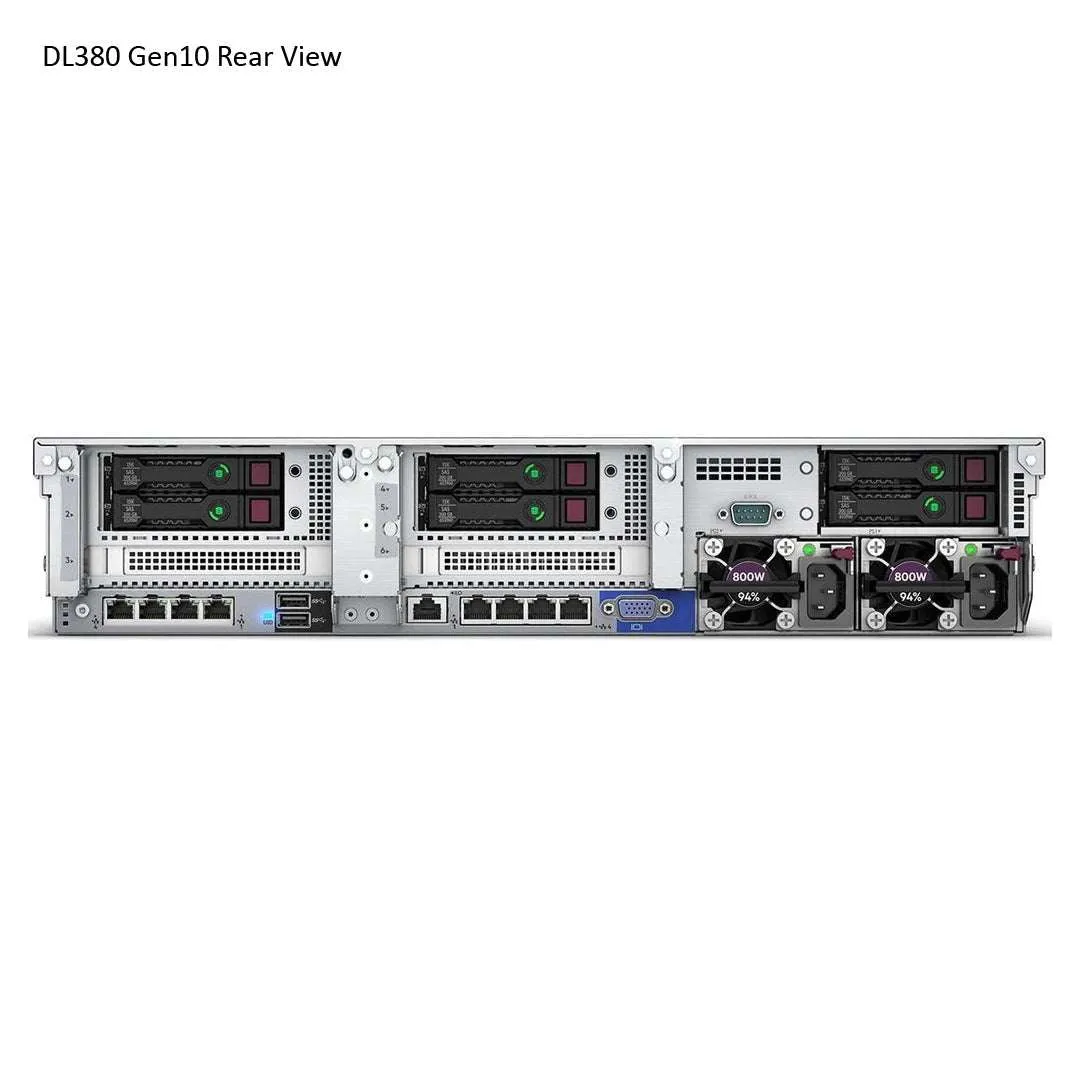

Rear Upgrades:

2SFF SAS/SATA (826688-B21)
3LFF SAS/SATA (826685-B21)
Both can be installed at once

DL380 G10 12x 3.5" Chassis

Front Upgrades:

Mid Upgrades:

4x LFF Midplane SAS/SATA (826686-B21)

Rear Upgrades:

2SFF SAS/SATA (826688-B21)
2SFF Premium HDD SAS/SATA Kit (826687-B21)
3LFF SAS/SATA (826685-B21)
Both LFF and SFF can be installed at once

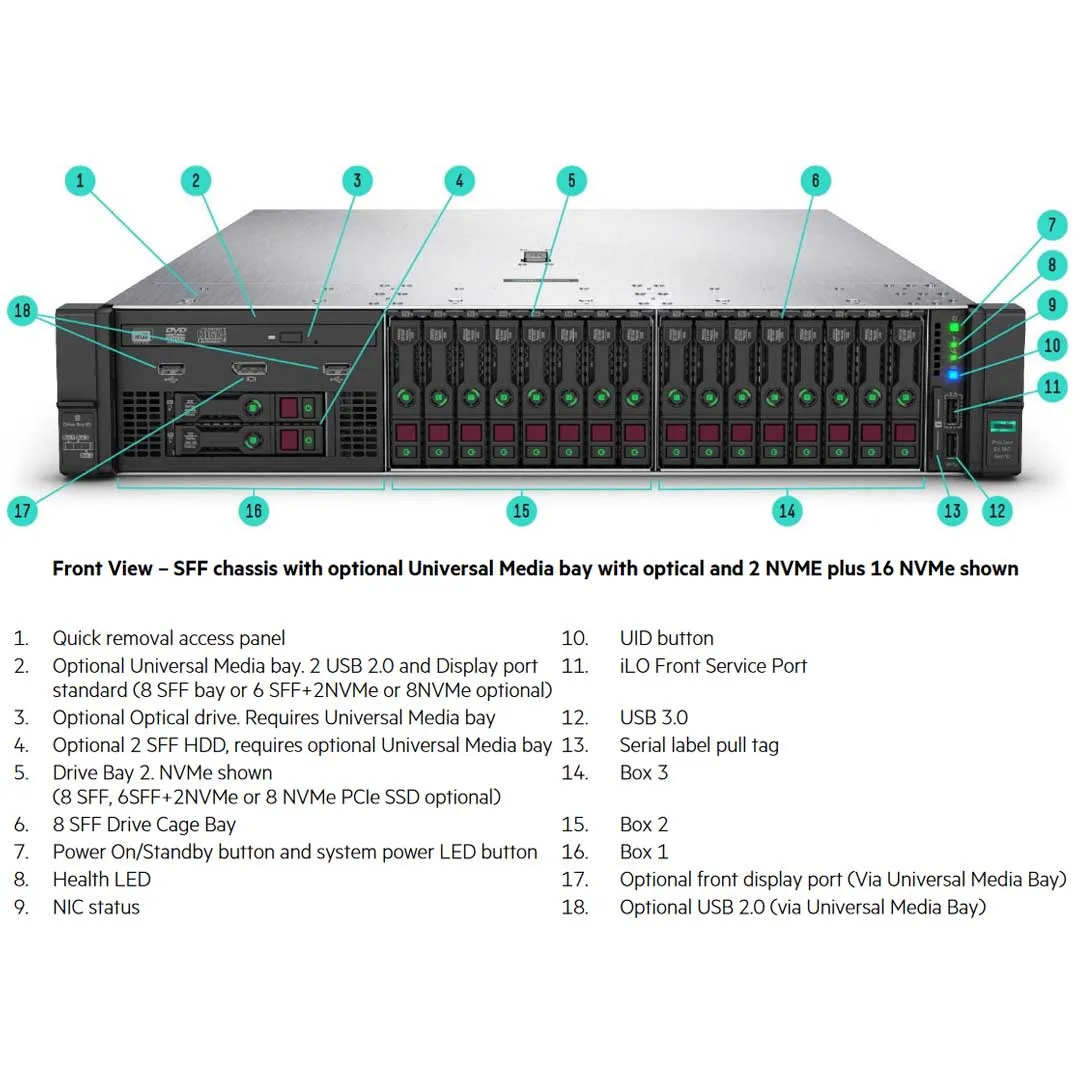

DL380 G10 8x 2.5" Chassis

Box 1:

Universal Media Bay (826708-B21)
2SFF Premium Front SAS/SATA (826687-B21)
2SFF Premium Front NVMe (826687-B21)
2x NVMe (878189-B21)
4x NVMe (878186-B21)

Box 2:

8x SAS/SATA (826691-B21)
8x NVMe Drives (826689-B21)
6x SAS/SATA 2x NVMe (826690-B21)

Box 3:

8x SAS/SATA (826691-B21)
8x NVMe Drives (826689-B21)
6x SAS/SATA 2x NVMe (826690-B21)

Rear Upgrades:

2SFF Premium SAS/SATA (826687-B21)
Can support up to 6 Rear Drives
Max of 20 NVMe drives

DL380 G10 24x 2.5" Chassis

Box 1:

8x SFF (826691-B21)
6x SAS/SATA 2x NVMe (826690-B21)
2x NVMe (878189-B21)
4x NVMe (878186-B21)
8x NVMe (826689-B21)

Box 2:

8x SFF (826691-B21)
6x SAS/SATA 2x NVMe (826690-B21)
8x NVMe Drives (826689-B21)

Box 3:

8x SFF (826691-B21)
6x SAS/SATA 2x NVMe (826690-B21)
8x NVMe Drives (826689-B21)

Rear Upgrades:

2SFF SAS/SATA 1x16 Riser (826688-B21)
Can support up to 6 Rear Drives
Max of 20 NVMe drives

HPE DL380 Gen10 Maximum Internal Storage

Hot Plug SFF SAS HDD 0 TB 24 6 x 2.4 TB* (with optional rear SFF drive cage)
Hot Plug SFF SATA HDD 0 TB 24 6 x 2 TB (with optional SFF drive cage)
Hot Plug LFF SAS HDD 68 TB 12 4 3 x 16 TB 2 x 3.84 TB (with optional mid-tray and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug LFF SATA HDD 68 TB 12 4 3 x 16 TB 2 x 3.84 TB (with optional mid-tray and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug SFF SAS SSD 459 TB 24 6 x 15.3 TB (with optional rear SFF drive cage)
Hot Plug SFF SATA SSD 4 TB 24 6 x 7.68 TB (with optional rear SFF drive cage)
Hot Plug LFF SATA SSD 16 TB 12 4 3 x 1.92 TB 2 x 3.84 TB (with optional mid-tray and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug LFF SAS SSD 16 TB 12 4 3 x 1.92 TB 2 x 3.84 TB (with optional mid-tray and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug SFF NVMe PCIe SSD 2 TB 20 x 15.36 TB NVMe

Chassis Storage Upgrades - Click to Open

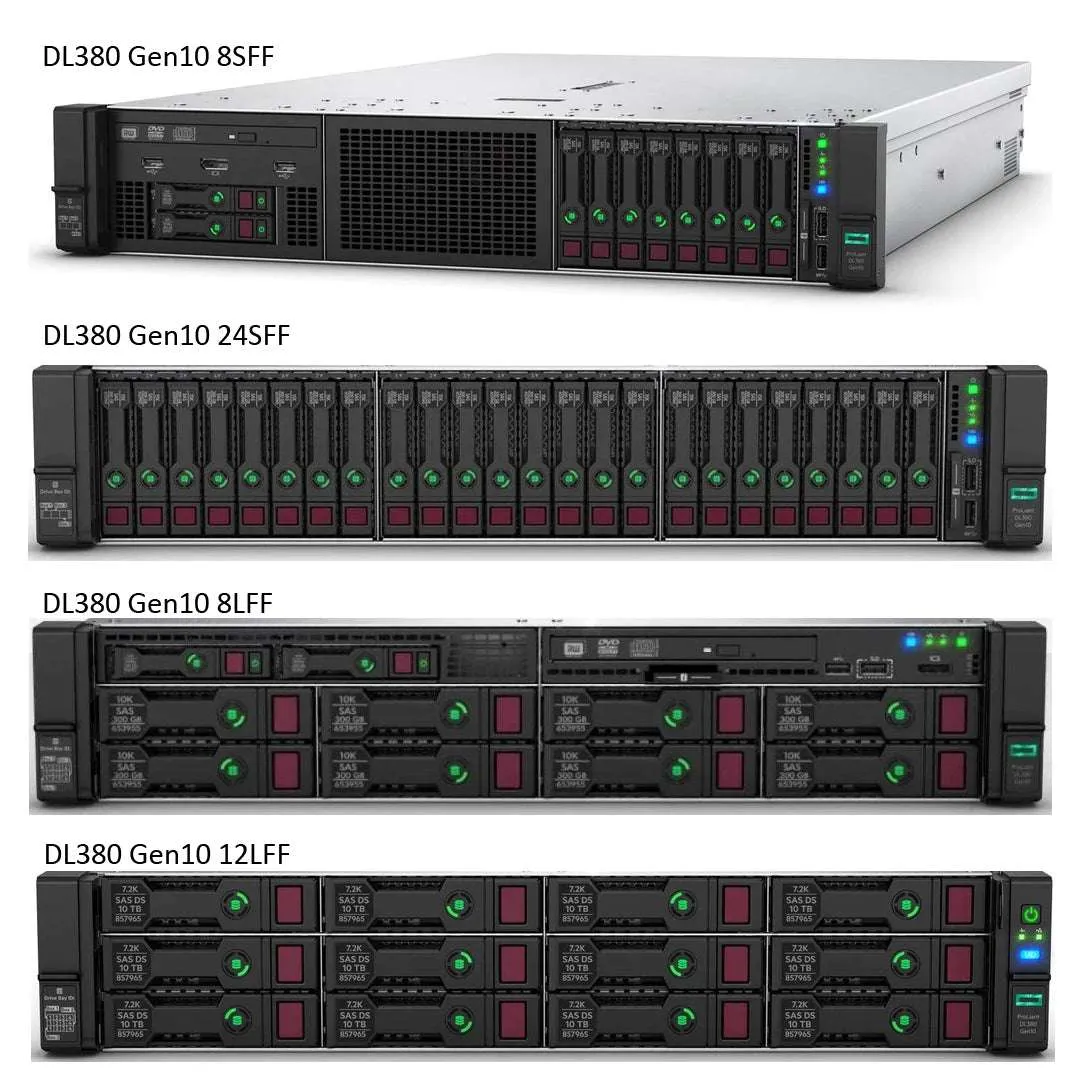

CTO Server	8 SFF	24 SFF	8 LFF	12 LFF
Included Drive Cage	8 SFF SAS/SATA	3X 8 SFF SAS/SATA	8 LFF UMB	12 LFF Chassis
Universal Media Bay	1 Optional	Not available	1 Included	Not available
ODD	1 Optional with UMB	Not available	1 Optional	Not available
8 SFF Drive Cage	Up to 2 Optional	Not available	Not available	Not available
8 NVMe/SAS Bay	Up to 3 Optional	Not available	Not available	Not available
8 NVMe Cage	Up to 3 Optional	Not available	Not available	Not available
2 SFF SAS/SATA (Front)	1 Optional with UMB	Not available	1 Optional	Not available
2 SFF SAS/SATA (Rear)	1 Optional	1 Optional	1 Optional	1 Optional
2 NVMe (FRONT)	1 Optional with UMB	Not available	1 Optional	Not available

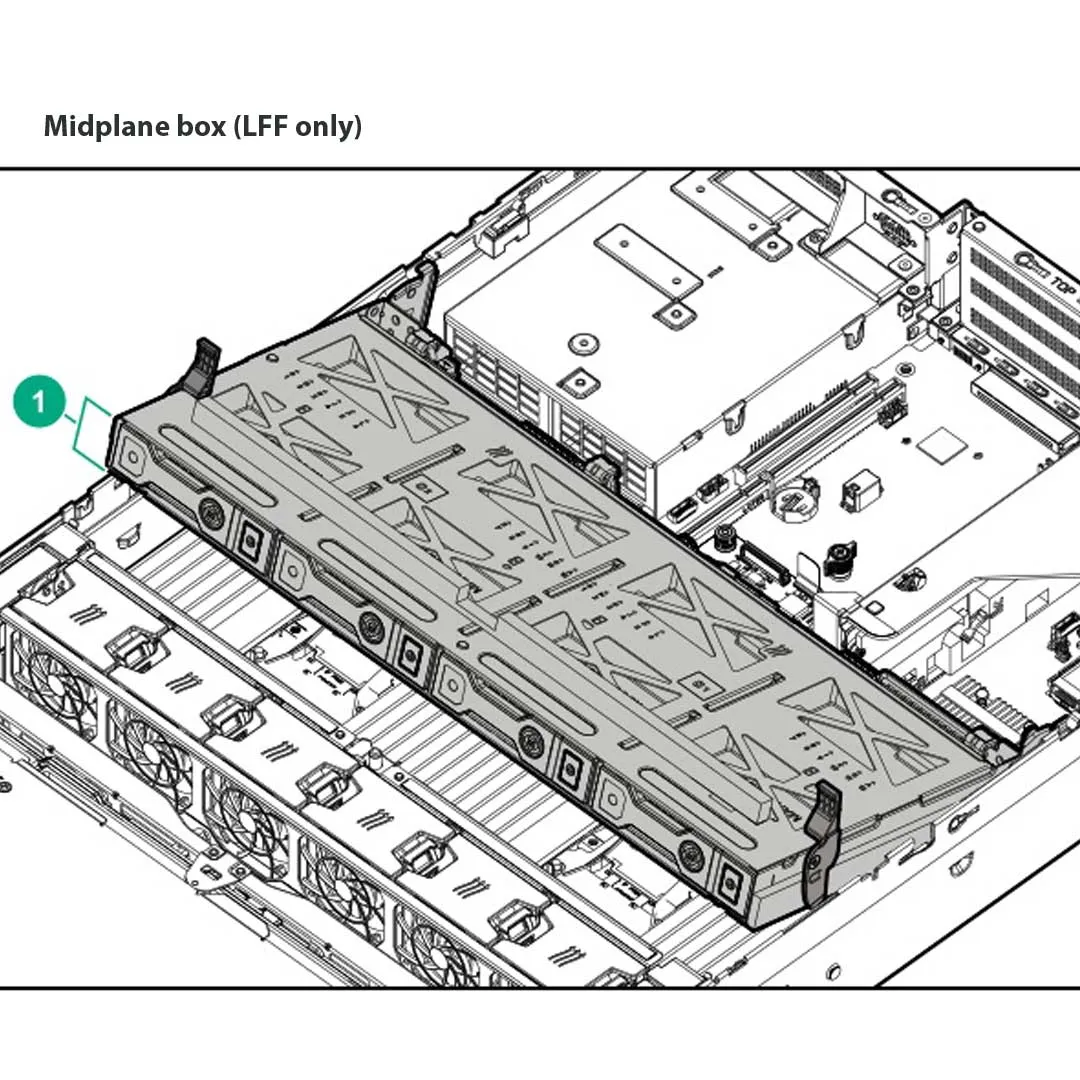

4 LFF Mid-plane	Not available	Not available	1 Optional	1 Optional
3 LFF Rear	Not available	Not available	1 Optional	1 Optional

HPE Smart Storage Controllers

The DL380 supports the Type-A AROC Controllers, by installing a Type-A controller you will save a PCI slot on the risers. This is a great way to keep flexibility without compromising an expansion slot. Please view the Spec manual for more details on the cabling of these controllers.

HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled. The S100i uses 14 embedded SATA ports, but only 12 ports are accessible as 2 are leveraged to support the 2 M.2 options on the primary riser.

If more than 8 SATA devices are being supported on this S100i controller, then 1 of the SAS 3POS Cable Kit (826709-B21) is required.

Performance RAID Controllers require the HPE Smart Hybrid Capacitor (P02377-B21) or the HPE Smart Storage Battery (P01366-B21) which are sold separately.

Tri-Mode MegaRAID Controllers - Basic Carrier Only

The HPE DL380 Gen 10 Rack Server has only two Chassis options that support the Tri-Mode MegaRAID Controllers.

Only support Basic Carrier SFF SAS/SATA storage devices
Mixing of BC and SC carrier types is not allowed.
NVMe is not supported

Supported Chassis Options

HPE DL380 Gen10 NC 8SFF BC CTO Server (P56969-B21)
HPE DL380 Gen10 8SFF BC CTO Server (P56970-B21)

Broadcom controllers supported drive cage upgrades:

2SFF BC HDD SAS/SATA Riser Kit (P57772-B21)
2SFF Premium HDD SAS/SATA BC Front/Rear Backplane Kit (P57773-B21)
8SFF SAS/SATA BC Box 1-2 Backplane Kit (P57774-B21)

The Tri-Mode Controller cables.

HPE ProLiant DL38x 8SFF SAS/SATA Tri-Mode Cable Kit (P55467-B21)
HPE ProLiant DL38x Gen10 Plus 2SFF SAS/SATA Tri-Mode Cable Kit (P55469-B21)
HPE ProLiant DL38x Gen10 Plus 2SFF Rear Tri-Mode Cable Kit (P55471-B21)

HPE DL380 Gen10 M.2 Drives

The M.2 Drive support Software RAID only and it must be enabled by selecting the SW RAID (784308-B21). The Primary Riser support 3 PCI slots 1 GPU Power Connector and Dual M.2 drives. This is the only riser that supports the M.2 on the riser card without taking up a PCIe slot.

All Servers come with the S100i Smart Array Controller with embedded software RAID support for 12 drives. The S100i uses 14 embedded SATA ports, but only 12 ports are accessible as 2 are leveraged to support the 2 M.2 options on the primary riser.

Some other ways to install M.2 Drives is with the uFF drive bays. The rear Premium 2SFF HDD Kit (826687-B21) and 2SFF HDD Riser Kit (826688-B21) both support the use of uFF drives. The last way to install M.2 drives is for a Boot Option only. The HPE NS204i-p x2 Lanes NVMe PCIe3 x8 OS Boot Device (P12965-B21) comes with 2x480GB M.2 Drives.

M.2 Installtion Options

Default Primary Riser - x8,x16,x8
AIC M.2 SSD Enablement Kit (878783-B21)
HNS204i-p OS Boot Device (P12965-B21)
Premium 2SFF HDD Kit (826687-B21)
2SFF HDD Riser Kit (826688-B21)

Enable Software RAID with HPE Smart Array SW RAID
(784308-B21)

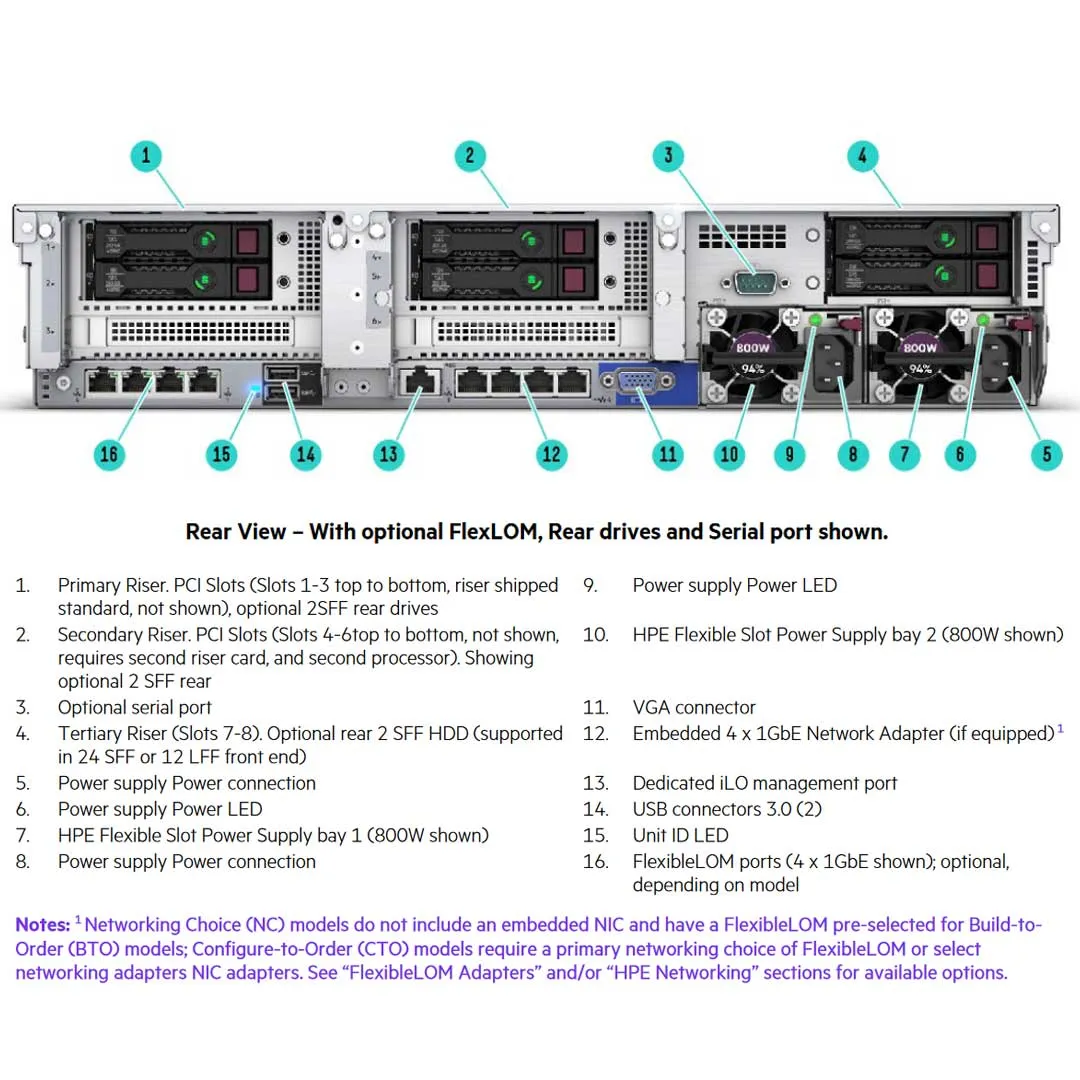

HPE DL380 Gen10 PCI Risers

There are quite a few selections for riser options on this DL380 Gen10 Rack Server. Please look over the list below carefully to find the correct one for your configuration.

Primary Riser

Default - x8,x16,x8 with dual m.2

826704-B21 - x0,x16,x16

871674-B21 - x16,x16,x0

826694-B21 - x16,x16,x0

867807-B21 - 8x NVMe

871673-B21 - 2x NVMe

826688-B21 - 2x SFF

P14374-B21 - x8,x16,x8 GPU

871676-B21 - x0,x16,x16 GPU

Secondary Riser

870548-B21 - x8,x16,x8

826704-B21 - x0,x16,x16

826694-B21 - x16,x16,x0

873732-B21 - 8x NVMe

867806-B21 - 2x NVMe

826688-B21 - 2x SFF

P14373-B21 - x8,x16,x8 GPU

826685-B21 - 3 Rear LFF Kit

Tertiary Riser

826700-B21 - x16,x0,x0

875780-B21 - x8,x8,x0

867808-B21 - 4x NVMe

826685-B21 - 3 Rear LFF Kit

Riser Information - Click to Open

Part Number	Description	Riser Position			Bus Width (Gen3 Lanes)			NVMe Direct Connect
Part Number	Description	Primary	Secondary	Teritary	Top Slot	Middle Slot	Bottom Slot	Ports	Drive Count
N/A	This is the default riser in the chassis	D	N	N	x8	x16	x8	-	-
870548-B21	HPE DL Gen10 x8/x16/x8 Riser Kit	N	O	N	x8	x16	x8	-	-
826704-B21	HPE DL Gen10 x16/x16 GPU Riser Kit	O	O	N	0	x16	x16	-	-
826694-B21	HPE DL38X Gen10 x16/x16 Riser Kit	O	O	N	x16	x16	0	-	-
867807-B21	HPE DL38X Gen10 4-port 8 NVMe Primary SlimSAS Riser	O	N	N	0	0	0	4	8
867808-B21	HPE DL38X Gen10 2-port 4 NVMe SlimSAS Riser	N	N	O	0	0	0	2	4
873732-B21	HPE DL38X Gen10 4-port 8 NVMe Secondary SlimSAS Riser	N	O	N	0	0	0	4	8
867806-B21	HPE DL38X Gen10 x8/x8/x8 1-port 2 NVMe SlimSAS Riser	N	O	N	x8	x8	x8	1	2
871673-B21	HPE DL38X Gen10 x8/x8/x8 1-port 2 NVMe SlimSAS FIO Riser Kit	O	N	N	x8	x8	x8	1	2
826688-B21	HPE DL38X Gen10 2SFF HDD SAS/SATA Riser Kit	O	O	N	0	0	x16	-	-
826700-B21	HPE DL38X Gen10 x16 Tertiary Riser Kit	N	N	O	x16	0	0	-	-
875780-B21	HPE DL38X Gen10 2 x8 PCIe Tertiary Riser Kit	N	N	O	x8	x8	0	-	-
871674-B21	HPE DL38X Gen10 Slot 1/2 x16/x16 FIO Riser Kit	O	N	N	x16	x16	0	-	-
871676-B21	HPE DL38X Gen10 x16/x16 GPU Slot2/3 FIO Riser Kit	O	N	N	0	x16	x16	-	-
P14374-B21	HPE DL38X Gen10 x16/x16/x16 Primary GPU FIO Kit	O	N	N	x8	x16	x8	-	-
P14373-B21	HPE DL38X Gen10 x16/x16/x16 Secondary GPU FIO Kit	N	O	N	x8	x16	x8	-	-
