CPU |
IntelÆ Socket LGA1200 for 11th Gen IntelÆ Coreô processors & 10th Gen IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors |
| Supports IntelÆ 14 nm CPU | |
| Supports IntelÆ Turbo Boost Technology 2.0 and IntelÆ Turbo Boost Max Technology 3.0** | |
| ** IntelÆ Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
Chipset
|
IntelÆ Z590 Chipset |
Memory
|
4 x DIMM, Max. 128GB, DDR4 DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports IntelÆ Extreme Memory Profile (XMP) | |
| OptiMem II | |
| * 10th Gen IntelÆ Coreô i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. | |
| * 11th Gen IntelÆ Coreô processors support 3200/2933/2800/2666/2400/2133 natively. | |
Graphics
|
1 x DisplayPort 1.4** |
| 1 x HDMITM 2.0*** | |
| * Graphics specifications may vary between CPU types. | |
| "** Only IntelÆ 11th Coreô processors support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others will only support DisplayPort 1.4 with max. resolution | |
| of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates" | |
| *** Only IntelÆ 11th Coreô processors, support HDMIô 2.0 with max. resolution of 4K@60Hz, others would only support HDMIô 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update. | |
| **** VGA resolution support depends on processors' or graphic cards' resolution. | |
Expansion Slots
|
IntelÆ 11th & 10th Gen Processors |
| 3 x PCIe 4.0/3.0 x16 slots* | |
| - IntelÆ 11th Coreô processors support PCIe 4.0 x16 | |
| - IntelÆ10th processors support PCIe 3.0 x16 | |
| IntelÆ Z590 Chipset | |
| 1 x PCIe 3.0 x4 slot | |
| * Supports PCIe bandwidth bifurcation for RAID on CPU function. | |
Storage
|
Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports |
| IntelÆ11th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 | |
| - Only IntelÆ 11th Coreô processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs | |
| IntelÆ Z590 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*** | |
| M.2_3 slot (Key M), type 2242/2260/22110 (supports PCIe 3.0 x4 & SATA modes)**** | |
| 6 x SATA 6Gb/s ports | |
| *Raid function for PCIe mode SSD in IntelÆ Rapid Storage Technology is available with either 1. IntelÆ SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. | |
| ** To enable IntelÆ Optaneô Memory (Hybrid Storage device), it must be installed in PCH-attached slots with IntelÆ Rapid Storage Technology. | |
| *** M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled. | |
| **** M.2_3 shares bandwidth with SATA6G_6. When M.2_6 runs SATA mode, SATA6G_6 will be disabled. | |
Ethernet
|
|
1 x IntelÆ I225-V 2.5Gb Ethernet |
|
USB
|
Rear USB (Total 9 ports) |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ) | |
| 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x Type-CÆ) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 1 connector (suppports USB Type-CÆ) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
Audio
|
"Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* |
| - Impedance sense for front and rear headphone outputs | |
| - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers | |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) | |
| - Supports up to 32-Bit/192 kHz playback*" | |
| Audio Features: | |
| - Power pre-regulator reduces power input noise to ensure consistent performance | |
| - Rear optical S/PDIF out port | |
| - Premium Japanese audio capacitors | |
| - Audio Shielding | |
| - Dedicated audio PCB layers | |
| - Audio cover | |
| - Unique de-pop circuit | |
| * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. | |
Back Panel I/O Ports
|
1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ) |
| 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x Type-CÆ) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMIô port | |
| 1 x IntelÆ I225-V 2.5Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x Optical S/PDIF out port | |
Internal I/O Connectors
|
|
Fan and Cooling related |
|
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 3 x 4-pin Chassis Fan headers | |
| 1 x 4-pin VRM_HS Fan header | |
| 1 x W_PUMP header | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin 12V Power connector | |
| 1 x 4-pin 12V Power connector | |
| Storage related | |
| 3 x M.2 slots (Key M) | |
| 6 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-CÆ) | |
| 1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | 3 x AURA Addressable Gen 2 headers |
| 1 x AURA RGB headers | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x CPU Over Voltage jumper | |
| 1 x Power button | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thermal Sensor header | |
| 1 x Thunderboltô header | |
Special Features
|
ASUS 5X PROTECTION III |
| - ASUS DIGI VRM (- Digital power design with Dr. MOS) | |
| - ASUS Enhanced DRAM Overcurrent Protection | |
| - ASUS ESD Guards | |
| - ASUS LANGuard | |
| - ASUS Overvoltage Protection | |
| - ASUS Stainless-Steel Back I/O | |
| ASUS Q-Design : | |
| - M.2 Q-Latch | |
| - ASUS Q-Connector | |
| - ASUS Q-DIMM | |
| - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow-green]) | |
| - ASUS Q-Slot | |

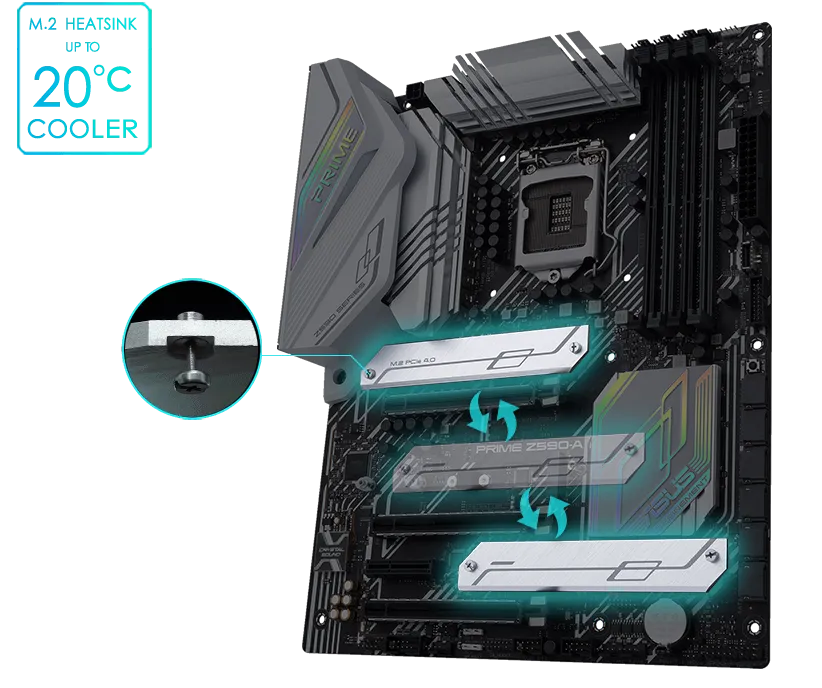

| ASUS Thermal Solution: | |
| - Aluminum M.2 Heatsink | |
| - Flexible M.2 heatsink | |
| ASUS EZ DIY: | |
| - Procool | |
| - Pre-mounted I/O shield | |
| - ASUS SafeSlot | |
Software Features
|
ASUS Exclusive Software: |
| Armoury Crate: | |
| - Aura Creator | |
| - Aura Sync | |
| - Two-Way AI Noise Cancelation | |
| AI Suite 3 | |
| - 5-way Optimization with AI Overclocking | |
| TPU | |
| EPU | |
| Digi VRM | |
| Fan Xpert 4 | |
| Turbo app | |
| - EZ update | |
| AI Charger | |
| ASUS CPU-Z | |
| ASUS Turbo LAN | |
| MyAsus | |
| DTS:XÆ Ultra | |
| UEFI BIOS: | |
| AI Overclocking Guide | |
| ASUS EZ DIY : | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| - EZ Tuning Wizard | |
| FlexKey | |
BIOS
|
256 Mb Flash ROM, UEFI AMI BIOS |
Manageability
|
|
WOL by PME, PXE |
|
Accessories
|
|
Cables |
|
| 3 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 2 x M.2 Rubber Packages | |
| 1 x Q-connector | |
| Installation Media | |
| 1 x Support DVD | |
| Documentation | |
| 1 x User manual | |
Operating System
|
WindowsÆ 10 64-bit |
Form Factor
|
ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
